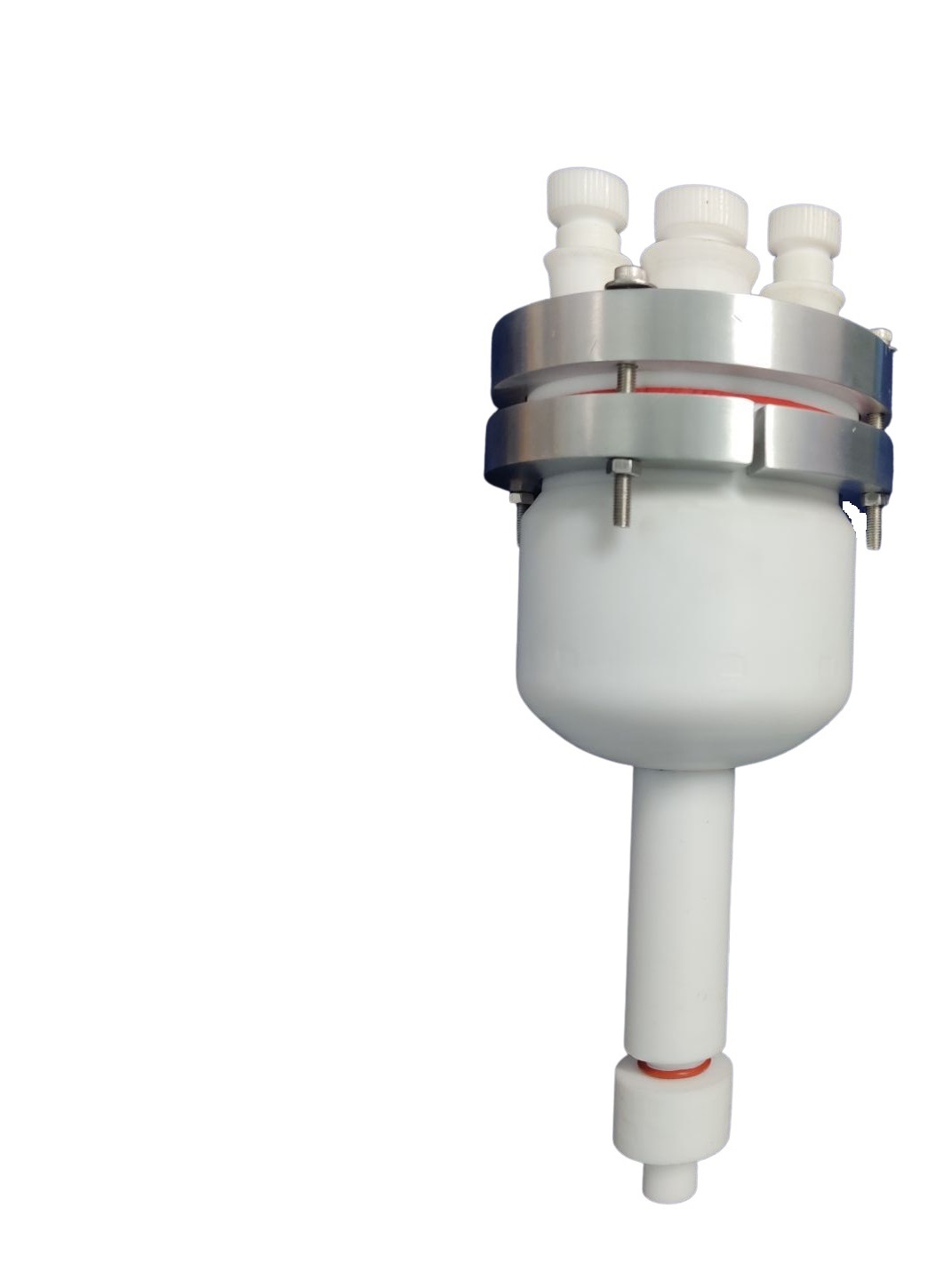

PTFE Reactor, is suitable used for lab scale, multi reactants and long period reactions. Reactants are put into Teflon Reactor, mixing and reaction happens inside kettle, under high pressure and high temperature 260° condition, after achieve certain proportion of products, discharge complete products from bottom. It has a Teflon bottom valve, can stand various corrosive working medium.

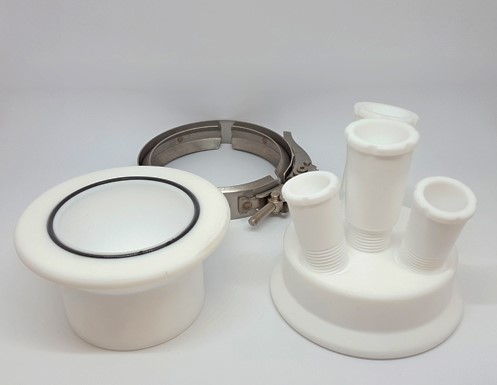

The head, head joints, body, stirrer bearing, valved bottom filter assembly, and stir shaft with agitator are all PTFE. We have from 250ml to 2000ml reactors These reactors are designed for flourine chemistry work as well as any work using strong alkalis where glass cannot be used.
| PTFE REACTOR | |||||
| Part No | Plain | Jacketed | Necks | Capacity (ml) | Centre Neck | Side Neck |
| 10120 | Plain | Glass | PTFE | 2 | 250 | B-19 | B-14 |
| 10121 | Plain | Glass | PTFE | 2 | 3 | 500 | B-24 | B-19 |
| 10122 | Plain | Glass | PTFE | 2 | 3 | 1000 | B-24 | B-19 |
| 10123 | Plain | Glass | PTFE | 2 | 3 | 1500 | B-29 | B-24 |
| 10124 | Plain | Glass | PTFE | 2 | 3 | 2000 | B-29 | B-24 |
| 10125 | Plain | Glass | PTFE | 2 | 3 | 4 | 3000 | B-34 | B-24 |
| 10126 | Plain | Glass | PTFE | 2 | 3 | 4 | 5000 | B-34 | B-24 |
| 10127 | Plain | Glass | PTFE | 3 | 4 | 10000 | B-34 | B-24 |
Reactor Lid Clamps are made of Aluminium | Stainless Steel 316 (optional)
