Hydrothermal Autoclave

This Product is a closed container designed for digesting samples that are hardly dissolved in the normal way. It also can be used as a synthesis reactor. It can dissolve insoluble substances fast by using strong acids or strong alkalis in a tank in a high temperature and high-pressure airtight environment.

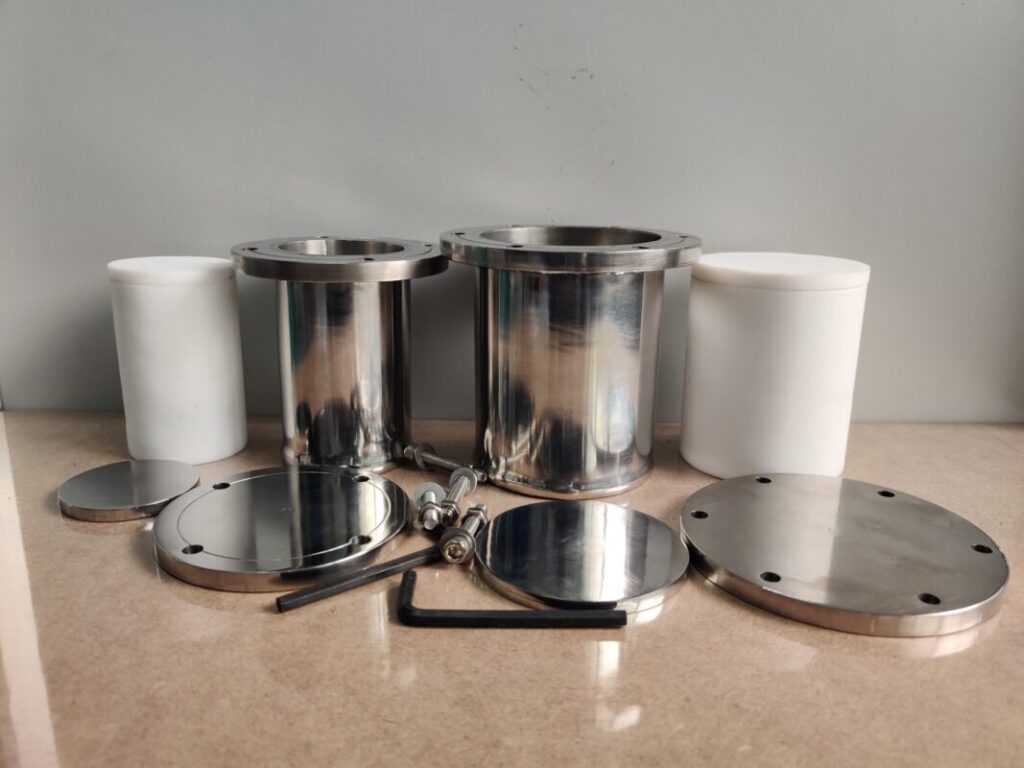

The Hydrothermal Autoclave Reactor is used to carry hydrothermal reactions at high pressures and high temperatures. Hydrothermal synthesis reactors generally come in two varieties: the first is a Polytetrafluoroethylene (PTFE)/Teflon-lined hydrothermal autoclave reactor and the second is a PPL lined autoclave. A hydrothermal reactor is mainly made up of two parts: an outer high-quality stainless-steel jacket and the inner Teflon liner or Teflon chamber. In the Teflon-lined autoclave, the reaction is carried out at a maximum of 240-degree Celsius (428 Fahrenheit), while the safe temperature is 200-degrees (392 Fahrenheit). The PPL (polyphenylene polymer) lined reactor is useful for reactions that operate at higher temperatures, where the safe temperature is 260-degree Celsius (500 Fahrenheit) and the maximum operating temperature is 280-degree (536 Fahrenheit). This product is extensively used in scientific laboratories, research and development labs, institutional organizations, quality analysis sections in industries, etc.

DOCUMENTATION

The Hydrothermal Autoclave reactor use to carry hydrothermal reaction at high pressure and high temperature.

                                   HYDROTHRMAL AUTOCLAVE

    Max Temp: 280 °C. PPL (polyphenylene polymer) Liner Max Pressure: 30 bar | 3 Mpa | 430 PSI
    Max Temp: 240 °C. PTFE (polytetrafluoroethylene) Liner
Part No Capacity SS Vessel SS Vessel  Liner  Liner
    Outer Dia Total Height  Outer Dia
49040 25 ml 55 mm 117 mm 33 mm PTFE | PPL
49041 50 ml 62 mm 138 mm 39 mm PTFE | PPL
49042 100 ml 75 mm 154 mm 49 mm PTFE | PPL
49043 150 ml 90 mm 186 mm 56 mm PTFE | PPL
49044 200 ml 95 mm 190 mm 63 mm PTFE | PPL
49045 250 ml 96 mm 210 mm 63 mm PTFE | PPL
49046 300 ml 97 mm 235 mm 63 mm PTFE | PPL
49047 500 ml 120 mm 220 mm 84 mm PTFE | PPL

Heating Block Optional | Material SS 304 | 316 | 316 L |  Comes with Teflon Or PPL ( polyphenylene polymer)  Liners

We produce both standard and customized autoclaves with variations in dia, height, liner and volume.
