Dead Bottom Sampler
Ideal for taking samples of petroleum products from different depths of Oil tanks, Vessels, Tank trucks, Oil tankers, and Pipelines, etc.

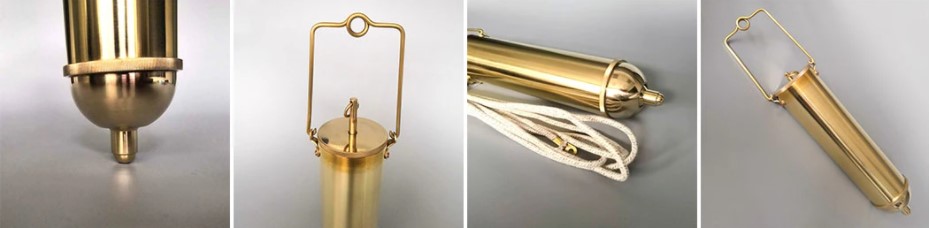

The Dead bottom sampler, normally has a projecting stem that opens the inlet valve as the stem strikes the bottom of the tank. The sample enters the sampler through the bottom valve and the air is released simultaneously through the top valve. The inlet valve automatically closes when the sampler is withdrawn. The sampler can also be equipped with extension rods to obtain samples from different points in a tank.
This can obtain samples from storage tanks, tank cars, and drums. When the sampler strikes the bottom of the tank, a plunger assembly opens to admit the sample. The plunger closes again when the implement is withdrawn, forming a tight seal. Samples can be taken at any depth with the use of a secondary trip line.
DEAD BOTTOM SAMPLER
| Part. No. | Capacity | Dia x Depth | Cable Length | Material | Weight |
|---|---|---|---|---|---|
| 45683 | 300 ml | 16 x 166 mm | 20 mtr | SS 316 | Brass | 1 . 18 kg |
| 45684 | 500 ml | 70 x 170 mm | 20 mtr | SS 316 | Brass | 1 . 22 kg |
| 45685 | 1000 ml | 75 x 250 mm | 20 mtr | SS 316 | Brass | 1 . 34 kg |
We produce both standard and customized dead bottom samplers with variations in width, depth, height and volume.
