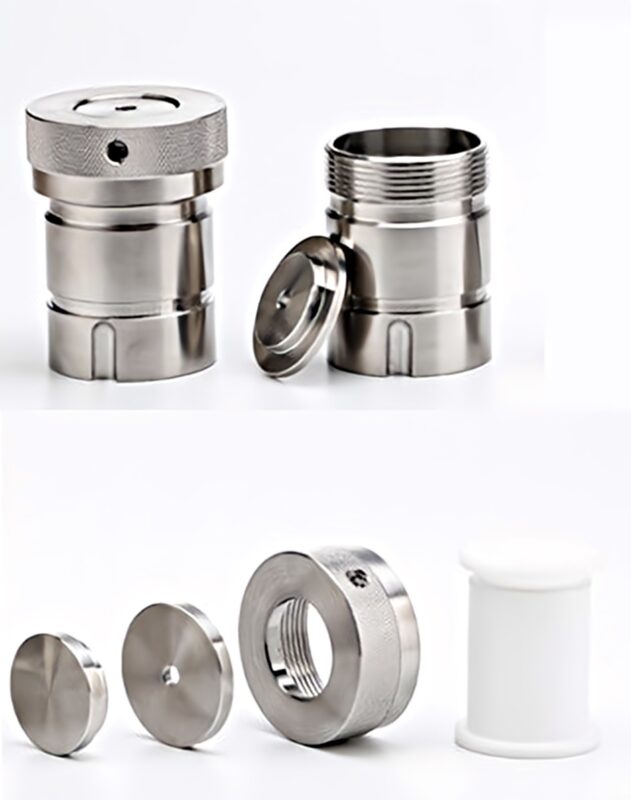

I ACID DEGESTION VESSEL



These Acid Digestion Vessels are designed specifically for preparing laboratory samples for chemical analysis. JN Sciencetech offers both general purpose and microwave acid digestion vessels for dissolving or digesting inorganic or organic samples in strong acids or alkalis in pressure vessels at elevated temperatures and pressures, with complete containment and recovery.

Acid digestion vessels offer an alternative to the task of preparing analytical samples for analysis. By combining the unique chemical inertness of PTFE with the advantages of a sealed pressure vessel, these convenient vessels offer a rapid procedure for sample dissolution or digestion that has several important advantages over more traditional methods of sample preparation. By providing a convenient means for holding strong mineral acids or alkalis at temperatures well above normal boiling points, these sturdy digestion vessels.

Part No.     ACID DIGESTION VESSEL

  Capacity Body Dia Body Height Closure Type Cups Inner Dia Cup  Inner Height Material Liner Max PSI Max Temp.
75645 10 ml 65 mm 83 mm Spanner Wrench 26 mm 23 mm SS 316 Teflon 1800 240°C
75646 25 ml 65 mm 83 mm Spanner Wrench 26 mm 44 mm SS 316 Teflon 1800 240°C
75647 25 ml 60 mm 86 mm Six Screws Cap 31 mm 30 mm SS 316 Teflon 1200 240°C
75648 25 ml 84 mm 126 mm Six Screws Cap 31 mm 32 mm SS 316 Teflon 5000 240°C
75649 25 ml 80 mm 112 mm Six Screws Cap 31 mm 32 mm SS 316 PPL 1200 280°C
75650 50 ml 64 mm 134 mm Spanner Wrench 26 mm 95 mm SS 316 Teflon 1800 240°C
75651 50 ml 80 mm 143 mm Six Screws Cap 31 mm 62 mm SS 316 PPL 1200 280°C
75652 125 m 95 mm 160 mm Six Screws Cap 46 mm 83 mm SS 316 Teflon 1900 240°C
75653 200 ml 95 mm 210 mm Six Screws Cap 46 mm 135 mm SS 316 Teflon 1900 240°C

Heating Blocks Optional | Available with PPL liner on Special Request | PPL ( polyphenylene polymer) Liner Max Working Temp 280°C

For Over Pressure  : A safety blow-off disc above the PTFE cup will release pressure

We produce both standard and customized autoclaves with variations in width, depth, height and volume.
